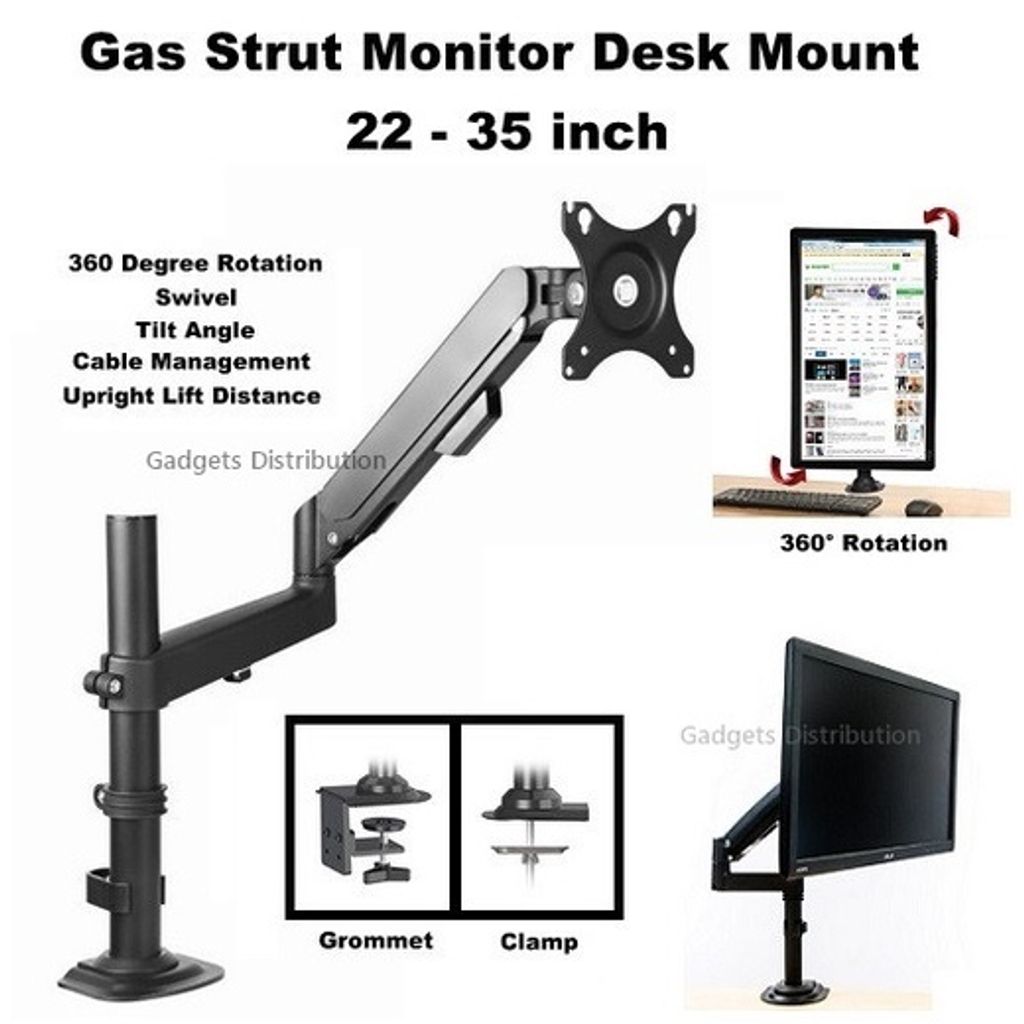

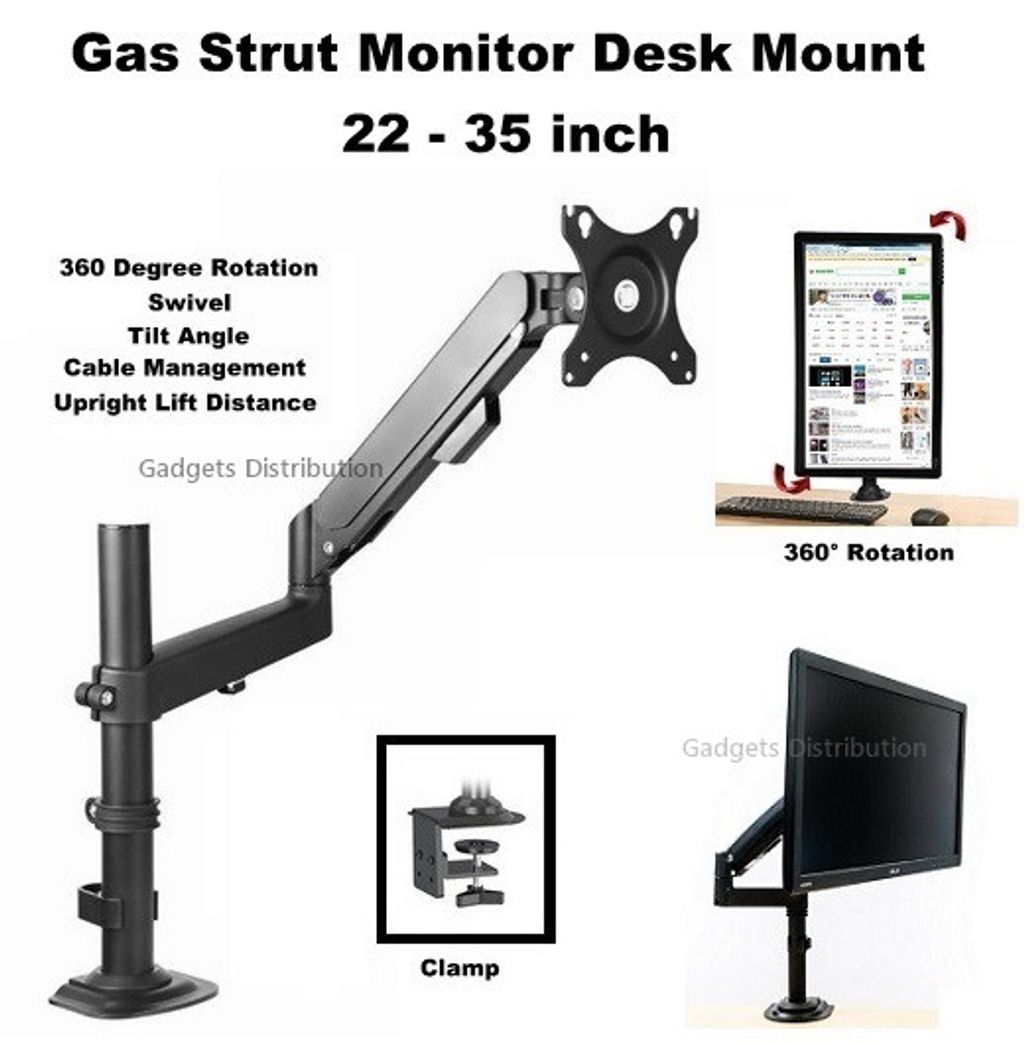

SM SH-KL01 9kg 12kg 22 - 35 Inch Gas Strut Heavy Large Monitor TV Bracket Mount Desk Stand H100 2852.1

SM SH-KL01 9kg 12kg 22 - 35 Inch Gas Strut Heavy Large Monitor TV Bracket Mount Desk Stand H100 2852.1

Descriptions:

- Full motions flexibility with all directional effortless adjustment without tools used.

- Durable gas-strut cylinder and conical joints constructed for smooth and stable operation.

- Ecological design concept relax your life.

- Integrated cable management conceals inside provide clean, neat and clutter-free appearance.

- Compact and retractable design increase your work space.

- It can be installed at the table edge or grommet installation anywhere of your worktable.

- The monitor arm is constructed in aluminum alloy material with plastic appearance.

Specifications:

Color: Black

Material: Alu Alloy

Fits: Most 22 to 35 inch screen flat panel TV

(Note: Supported screen size is provided as a reference only)

VESA Compliance: 75*75 / 100*100mm

Upright Lift Distance: 250mm

Maximum Extension: 550mm

Rotation: 360°

Swivel: ±90°

Tilt Angle: +85° to -30°

Load Capacity: Normal Version 2kg to 9kg / Upgraded Version 2kg to 12kg

Table Thickness: 25-80mm

Grommet Hole Diameter Support: 10-60mm

VESA:

When we refer to VESA sizes we are referring to the standard used to measure the hole pattern on the back of your Display.

If you do know your VESA pattern you can simply measure the distance side to side and top to bottom on your display. The distance in millimeters is the Vesa Hole Pattern.

***Kindly note that we are not able to offer any support or instruction on its usage, thank you***

Package Includes:

1 x Gas Strut Desktop Mount

1 x Some installing accessories

Stock No.: 2852.1
